| Place of Origin: | China |
| Brand Name: | MT |
| Certification: | CE |
| Model Number: | MT600 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 2500 |
| Payment Terms: | D/A, T/T, D/P |
| Model No.: | Mt800r, Mt1200r | Blade Qty: | 4+1 |
|---|---|---|---|
| Color: | White, Grey Or As Request | Blade Material: | Cr12MOV |

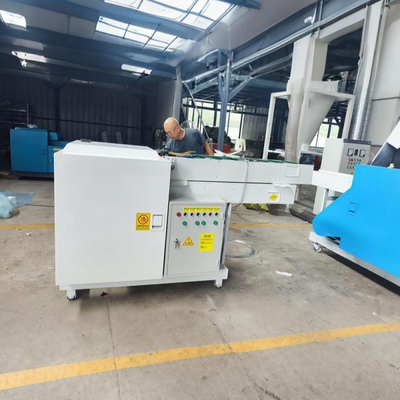

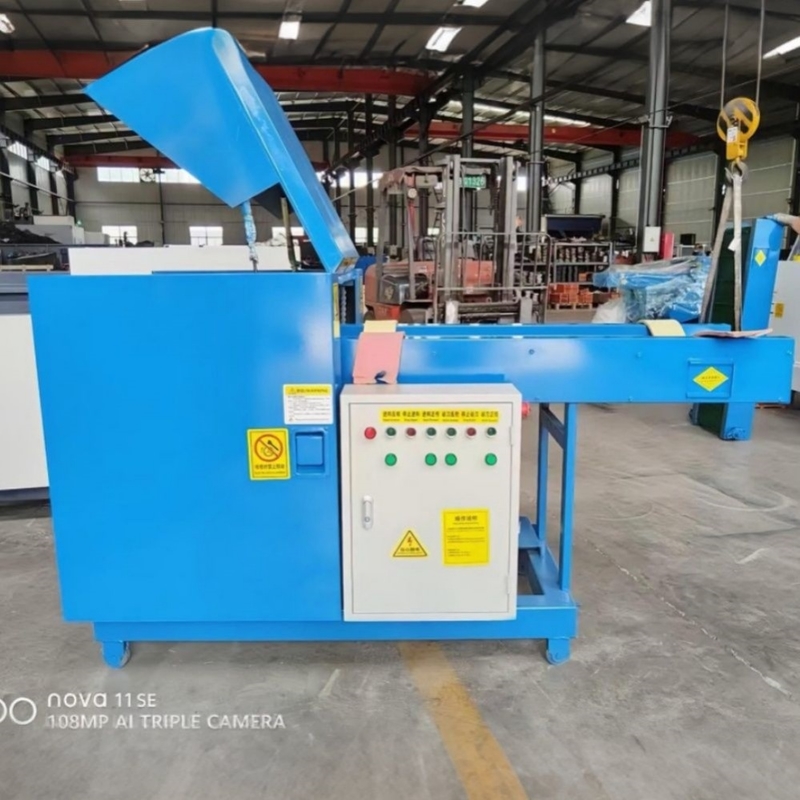

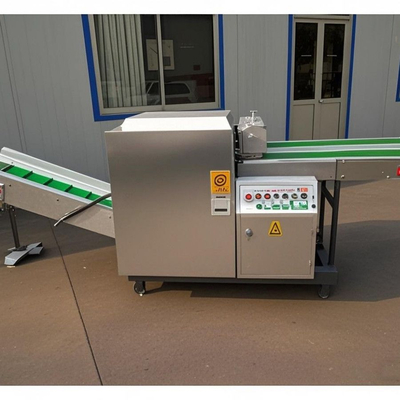

This rotary series cutting machine is mainly used to cut the waste rags, yarn, clothes, fabric, carpet, and chemical fiber, plastic material, paper, waste fishing net, rook wool, sponge etc. This equipment with high efficient and easy maintenance. Use the cutting between the blade roller and fixed blade to cut yarn, fabric etc. into small pieces for further processing. Length is adjustable from 5 cm-20 cm. Capacity can be control by the feeding speed with inverter control. It can meet the requirement of best quality, high output, low cost and also has a feature of reasonable structure, easy operation and the safe production and so on.
Basic Info.
| Model number | MT800 | MT1200 | MT1600 | MT2400 | MT3200 |
| Main motor | 8P7.5kw | 8P15kw | 8P18.5kw | 8P15kw(Two sets) | 8P30kw(Two sets) |
| Conveyer motor | 4p1.5kw | 4p2.2kw(Variable frequency motor) | 4p3.0kw(Variable frequency motor) | 4p4.0kw(Variable frequency motor) | 4p5.5kw(Variable frequency motor) |
| Belt wheel | Φ100 | Φ140 | Φ120 | Φ140 | Φ350 |
| Moving blade base | Φ300 | Φ400*600 | Φ500*800 | Φ600*1200 | Φ1000*1500 |
| Feeding conveyor | 1400*330mm | 3000*520mm | 3000*720mm | 3000*1100mm | 3000*1400mm |
| Output conveyor | 1400*330mm | 3000*520mm | 3000*720mm | 3000*1100mm | 3000*1400mm |
| Machine size | 2100*1000*1100 | 1400*1450*1500 | 1550*1700*1550 | 2100*1900*1550 | 3000*3300*3000 |
| Cutting size | 2.5.8CM | tunable | tunable | tunable | tunable |
| Capacity | 500-800kg/h | 800-1200kg/h | 1500-1200kg/h | 3000-4000kg/h | 6000-8000kg/h |
Waste fiber cutting machine is used to cut all kinds of fibers, such as chemical fiber, breast fiber, glass fiber, all kinds of textiles, old cloth and all kinds of waste yarn, cutting waste cloth, waste cloth, denim, waste clothes, sponge, glass fiber, chemical fiber, cloth, nylon cloth, PET fiber, fishing net, nylon net, PP rope, film, woven bags and other soft materials, etc. After cutting them into small pieces, they can be recycled. The tool adopts low speed large torque motor, the transmission process adopts cycloidal pin wheel reducer, speed regulation frequency conversion speed regulation, the operation and maintenance of each component is convenient. It has durable, stable and safe performance, which can improve production efficiency.
After Sales Service
1,We have after-sales service department, when customers have any problems with our machines, they can get timely feedback.
2,We have an installation team in China, and we can provide installation services worldwide if you require. We have professional technical team in Pakistan, Bangladesh, can provide technical services at any time.
3,If you have any questionsor needs, please feel free to contact our sales staff and they will get back to you within 1 hour. We are at your service 24 hours a day
