| Place of Origin: | China |
| Brand Name: | MKS |
| Certification: | CE |
| Model Number: | MT600 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 6000 |
| Delivery Time: | 7 |
| Payment Terms: | L/C, T/T, D/P |
| Warranty: | 1 Year | Certification: | CE, ISO9001: 2000 |
|---|---|---|---|
| Customization: | Available |

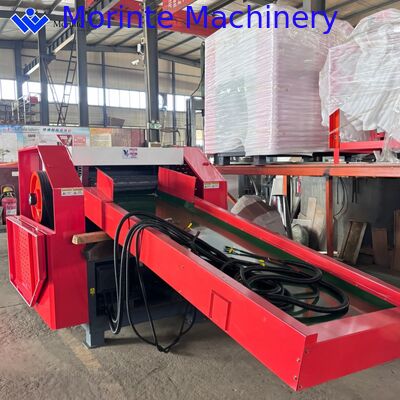

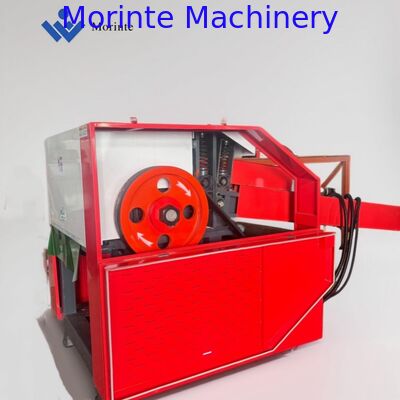

Plastic waste cutting and recycling production line
This industrial waste shredder is designed and suitable for textile waste, old clothes, and scrap materials, old clothes, fabrics, shoes, sponge foam, eps foam, epe foam, rock wool, etc. Output capacity about 800 - 1200kg/h. This cutting machine belongs to our medium-sized paper shredder / crusher. It is used to cut various materials into smaller sizes (from a few centimeters to several tens of centimeters). Our cutting tools use rotating twist blades, with a blade rotation speed of up to 1500 - 3000 rpm. The efficiency for processing thin fabrics is up to 1200 kg/h, which is 40% faster than traditional hydraulic cutting. The cutting tools are coated with diamond nano-film, with an anti-wear life of 400 hours or more, which is three times higher than ordinary alloy blades.
Product parameters
| Model number | MT800 | MT1200 | MT1600 | MT2400 | MT3200 |
| Main motor | 8P7.5kw | 8P15kw | 8P18.5kw | 8P15kw(Two sets) | 8P30kw(Two sets) |
| Conveyer motor | 4p1.5kw | 4p2.2kw(Variable frequency motor) | 4p3.0kw(Variable frequency motor) | 4p4.0kw(Variable frequency motor) | 4p5.5kw(Variable frequency motor) |
| Belt wheel | Φ100 | Φ140 | Φ120 | Φ140 | Φ350 |
| Moving blade base | Φ300 | Φ400*600 | Φ500*800 | Φ600*1200 | Φ1000*1500 |
| Feeding conveyor | 1400*330mm | 3000*520mm | 3000*720mm | 3000*1100mm | 3000*1400mm |
| Output conveyor | 1400*330mm | 3000*520mm | 3000*720mm | 3000*1100mm | 3000*1400mm |
| Machine size | 2100*1000*1100 | 1400*1450*1500 | 1550*1700*1550 | 2100*1900*1550 | 3000*3300*3000 |
| Cutting size | 2.5.8CM | tunable | tunable | tunable | tunable |
| Capacity | 500-800kg/h | 800-1200kg/h | 1500-1200kg/h | 3000-4000kg/h | 6000-8000kg/h |
Product production line
MTC800 Cleaning machine
1 Inside diameter: 800mm
2 Beater length: 2500mm
3 V teeth: 20CrMo
4 Teeth distance: 150mm, 15-20pcs
5 Power: 22kw
6 Beater speed: 750-800rpm/min
7 Capacity: 500-800kg/h
8 Weight: about 1500kgs

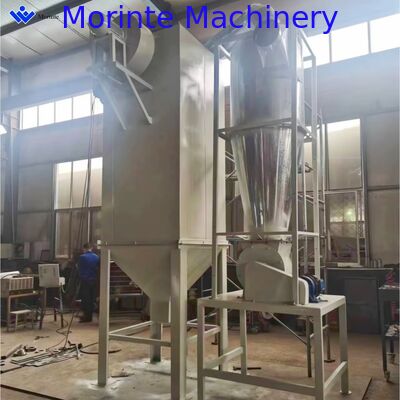

Cyclon and pulse dust filter
1 Bags: 25pcs for dust collecting
2 Fan: 5.5kw
3 Cyclon used to collect material from cleaning machine
4 Dust filter suction from cutter, cleaning machine and cyclon
5 Weight: 800kgs
6 Include pipes from each suction position to filter system
Product Application
The waste fiber cutter can be used to cut various fibers, such as chemical fibers, polyester fibers, glass fibers, various plastic products, various textiles, old fabrics, as well as various waste yarns, etc. It can also cut waste cloth, waste fabric, denim, waste clothing, sponge, glass fibers, chemical fibers, fabric, nylon fabric, PET fibers, fishing nets, nylon nets, PP ropes, films, woven bags and other soft materials. After cutting them into small pieces, they can be recycled and reused. This tool uses a low-speed high-torque motor, and the transmission process adopts a cycloidal pinwheel reducer. The speed adjustment uses variable frequency speed regulation. The operation and maintenance of each component are very convenient. Its performance is strong, stable and safe, and it can improve production efficiency.
Our customers
Through continuous operational practice and exploration, we have accumulated rich technical experience in the recycling production line of waste spun fibers. We know that not only should we meet the customers' demands, but also provide them with customized solutions and better after-sales services. Only in this way can the customers feel our dedication and sincerity.
After our Morinte people have continuously reformed and innovated over the years, we have developed a unique technical route of our own. Over the years, the countless customers we have accumulated, with the help of customers, have made our product production lines increasingly complete. We have also established good cooperative relationships with customers.
We have our own technical teams in many countries. Whether it is installation or after-sales debugging, we can arrive at the customers' side immediately because we know the importance of time for the customers.Our Jinan Morinte is looking forward to cooperating with more customers. Let's work together to contribute to our global environmental governance and restore our planet to a green land!
